Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000BASE-X Ethernet Switch

Brand Name : E-link

Model Number : LNK-IMC104GP Series

Certification : ISO9001, CE, ROHS, FCC

Place of Origin : China

MOQ : 1 pcs

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000/month

Delivery Time : 3-5 working days

Packaging Details : Industrial PoE Switch Standard Package

Packet Buffer Capacity : 1M bits

Processing Type : Store-and-Forward

Address Table Size : 2048 MAC Addresses

Optical Port : 1 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Dimensions (WxDxH) : 150 x 115 x 30 mm

Contact Now

Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000BASE-X Ethernet Switch


Model:LNK-IMC104GP Series

Overview
The LNK-IMC104GP Series is a rugged 4-port 10/100/1000Base-TX + 1-port 100/1000Base-X PoE switch.
It features 4 PoE+ ports, enabling connected powered devices, like IP cameras and wireless access points,
to receive both power and data over RJ-45 cables. The 100/1000Base-FX port supports both single-mode
and multi-mode fiber with 1- or 2-core options, making it ideal for establishing reliable network connections
over extended distances between remote locations.
Features

► 4 10/100/1000Base-TX + 1 100/1000Base-X

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports IEEE 802.3at PoE+ (30W per port)

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow Control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes

Ethernet
Standards:IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:1M bits
Processing Type:Store-and-Forward
Max Packet Length:9K Bytes
Address Table Size:2048 MAC Addresses
Interface
Connector:4 x RJ45
Optical Port:1 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:240W Max. (PoE in use)
5W Max. (PoE not in use)
Standard:IEEE802.3af/at/bt
PoE:
Port:RJ45 Port 1 ~ Port 4
Max. Power per Port:60W Max per port
Power Pin Assignment1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
LED Indicators:
Power:Power1, Power2 Status
PoE:Per Port Status
Ethernet (Per Port):Link/Activity
SFP:FX1
Dimensions (WxDxH):150 x 115 x 30 mm
Weight:0.5Kg
Casing:Metal Case
Mounting Options:DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

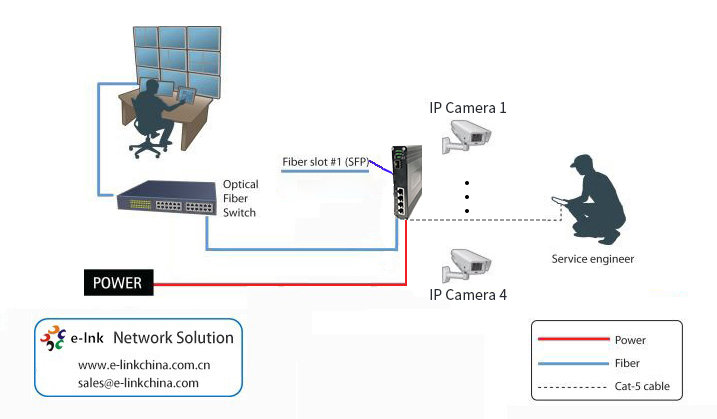

Application

  • Surveillance: Powers IP cameras for remote monitoring.
  • Wireless Networks: Connects and powers access points in large areas.
  • Smart Cities: Supports devices like sensors and security systems.


Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000BASE-X Ethernet Switch
Ordering Information

ModelDescription
LNK-IMC104GP60Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC104GP60-20Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC104GPS60-20Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC104GPF60-20Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC104GP60-SFPIndustrial Ethernet Switch: 4-Port 10/100/1000BASE-T (4-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch
SFP Options► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
