Mini 4K DVI Fiber Optic Extender with Stereo Audio
4K DVI Fiber Optic Extender Advantage
► DVI 1.0 and HDCP1.2 Support
► DDC HPDT Signal Support
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Hot-Pluggable, EMI/RFI Resistant
► Operating Temperature: -10~50°C
4K DVI Fiber Optic Extender Overview
The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of
uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a
resolution of maximum 4K*2K@60Hz, YUV 4:2:0.
The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission
over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers
are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal
for large-screen display, conferencing systems and home entertainment and so on. The device
has the ability of anti-interference, to ensure the stability of the signal.
4K DVI Fiber Optic Extender Technical Indexes
| Type of Extender | Fiber Transmitter for DVI signal over Optical Fiber Cable |
| Input Signals | DVI |
| Connector | DVI-D |
| Signal Support | DVI 1.0 format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID | Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |

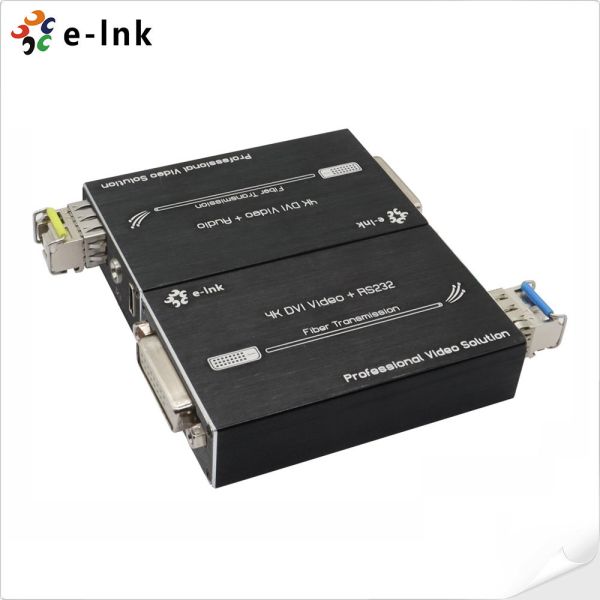

4K DVI Fiber Optic Extender Picture
4K DVI Fiber Optic Extender Application
Ordering Information
| Model | Description |
|
| LNK-MDA4K-MM | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S20 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S40 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
| LNK-MDA4K-S80 | Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
