10 100 1000Mbps PoE Power Splitter Industrial 802.3bt PoE Splitter 19V 36W Output

Product Categories
E-link China Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10 100 1000Mbps PoE Power Splitter Industrial 802.3bt PoE Splitter 19V 36W Output

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-INS901-19V

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Power Splitter Standard Export Package

Keywords : PoE Power Splitter

Output Voltage : 36W 19VDC

PoE Standard : 802.3af/at/bt Power over Ethernet

Distance : Up to 100 meters

Casing : IP40 Aluminum Case

Power Consumption : 41W Max.

Contact Now

PoE Power Splitter Industrial 10 100 1000Mbps 802.3bt 95W Power Over Ethernet 19VDC Output

PoE Power Splitter Advantages

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Power Output: 36W 19VDC (Terminal Block)
Power Consumption: 41W Max.
LED Indicators:
PWR: 19VDC Power OUT
POE: PoE Power IN
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview

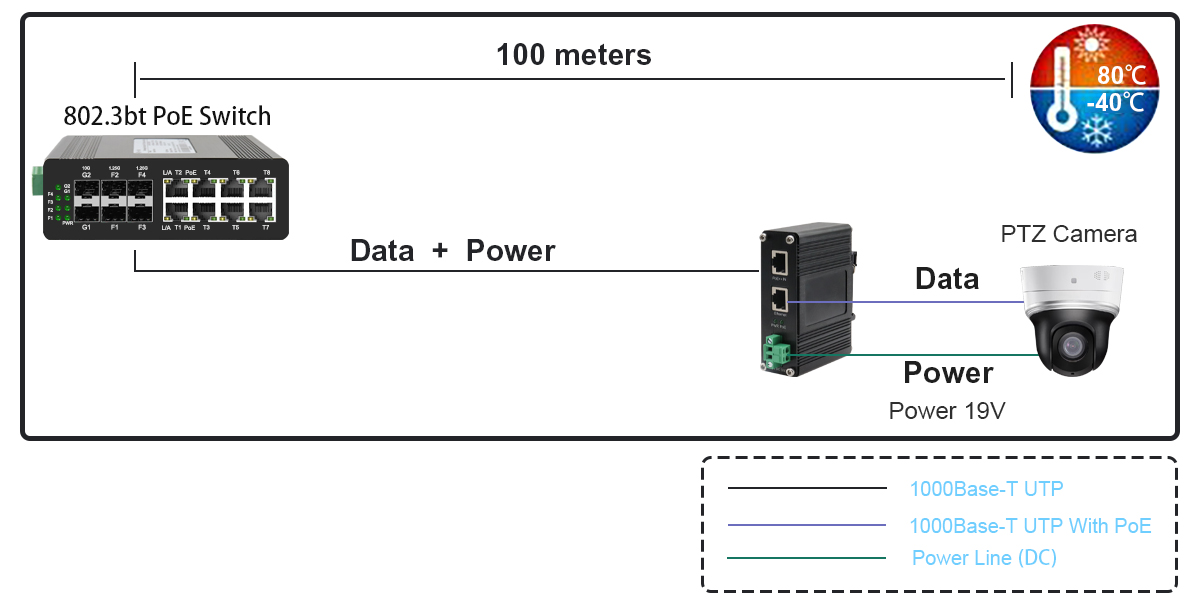

LNK-INS901-19V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

10 100 1000Mbps PoE Power Splitter Industrial 802.3bt PoE Splitter 19V 36W Output


10 100 1000Mbps PoE Power Splitter Industrial 802.3bt PoE Splitter 19V 36W Output

Ordering Information

Model Description
LNK-INS901-19V Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
